core Class Reference

Basic AMQP interactions, including sending messages and interacting with AMQP channels. More...

#include <core.hh>

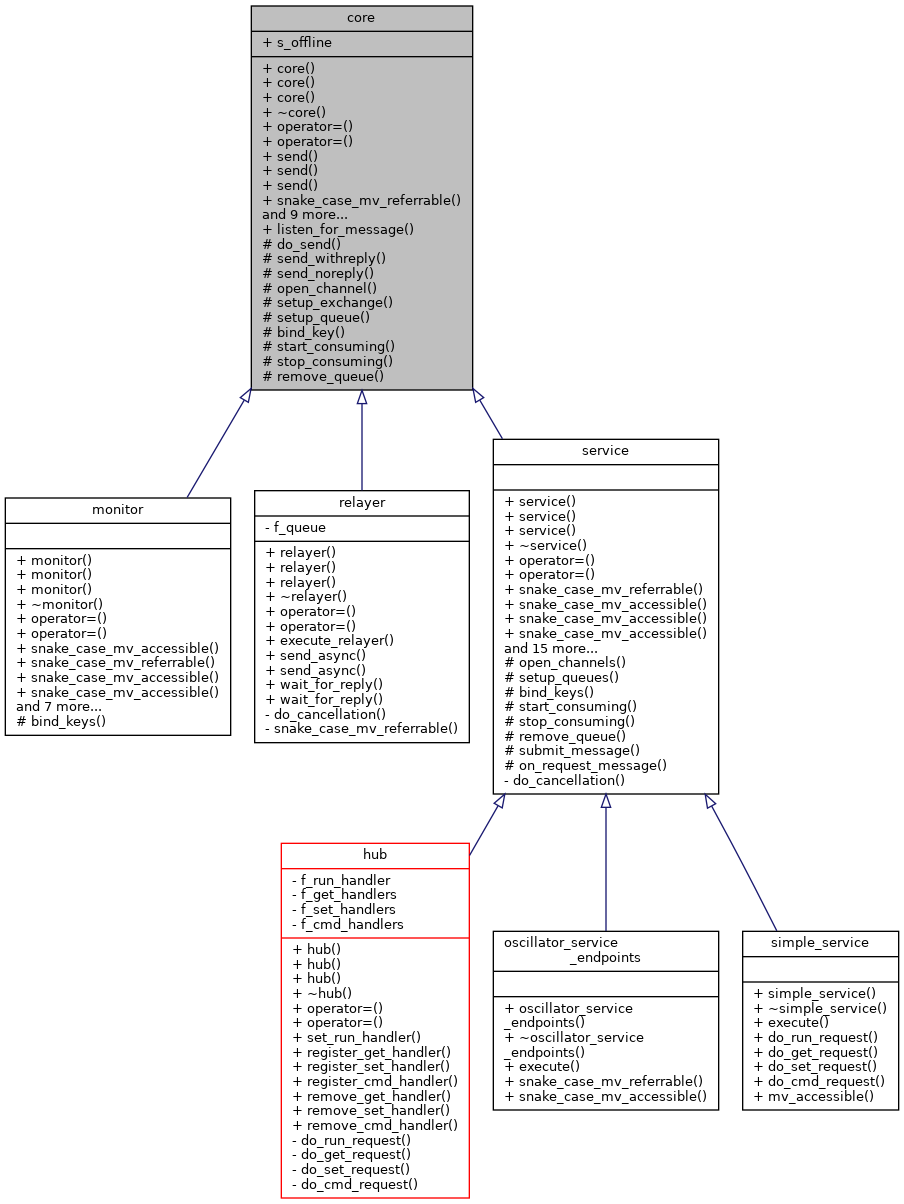

Inheritance diagram for core:

Public Types
enum class	post_listen_status {   unknown , message_received , timeout , soft_error ,   hard_error }

Public Member Functions
	core (const scarab::param_node &a_config=dripline_config(), const scarab::authentication &a_auth=scarab::authentication(), const bool a_make_connection=true)
	core (const core &a_orig)=default
	core (core &&a_orig)=default
virtual	~core ()=default
core &	operator= (const core &a_orig)=default
core &	operator= (core &&a_orig)=default
virtual sent_msg_pkg_ptr	send (request_ptr_t a_request, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
virtual sent_msg_pkg_ptr	send (reply_ptr_t a_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
virtual sent_msg_pkg_ptr	send (alert_ptr_t a_alert, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
	snake_case_mv_referrable (std::string, address)
	snake_case_mv_accessible (unsigned, port)
	snake_case_mv_referrable (std::string, username)
	snake_case_mv_referrable (std::string, password)
	snake_case_mv_referrable (std::string, requests_exchange)
	snake_case_mv_referrable (std::string, alerts_exchange)
	snake_case_mv_referrable (std::string, heartbeat_routing_key)
	snake_case_mv_accessible (unsigned, max_payload_size)
	snake_case_mv_accessible (bool, make_connection)
	snake_case_mv_accessible (unsigned, max_connection_attempts)

Static Public Member Functions
static void	listen_for_message (amqp_envelope_ptr &a_envelope, post_listen_status &a_status, amqp_channel_ptr a_channel, const std::string &a_consumer_tag, int a_timeout_ms=0, bool a_do_ack=true)
	listen for a single AMQP message More...

Static Public Attributes
static bool	s_offline = false

Protected Member Functions
sent_msg_pkg_ptr	do_send (message_ptr_t a_message, const std::string &a_exchange, bool a_expect_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
amqp_channel_ptr	send_withreply (message_ptr_t a_message, std::string &a_reply_consumer_tag, const std::string &a_exchange) const
bool	send_noreply (message_ptr_t a_message, const std::string &a_exchange) const
amqp_channel_ptr	open_channel () const

Static Protected Member Functions
static bool	setup_exchange (amqp_channel_ptr a_channel, const std::string &a_exchange)
static bool	setup_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)
static bool	bind_key (amqp_channel_ptr a_channel, const std::string &a_exchange, const std::string &a_queue_name, const std::string &a_routing_key)
static std::string	start_consuming (amqp_channel_ptr a_channel, const std::string &a_queue_name)
static bool	stop_consuming (amqp_channel_ptr a_channel, std::string &a_consumer_tag)
static bool	remove_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

Friends
class	receiver

Detailed Description

Basic AMQP interactions, including sending messages and interacting with AMQP channels.

Author

N.S. Oblath

The configuration for a core object is supplied via the constructor. The basic required information can be obtained from dripline_config. The configuration values have default parameters, and they can be modified with the config param_node, and a few parameters can be specified explicitly as constructor arguments. The order of precedence for those values is (items higher in the list override those below them): Constructor arguments (other than a_config) Config param_node object Defaults

If the broker is not specified in either the config object or as a constructor parameter, it will be requested from the authentication file.

A second constructor allows a user to create a core object without connecting to a broker.

The primary user interface is core::send(), one of which exists for each type of message (request, reply, and alert).

Core also contains a number of utility functions that wrap the main interactions with AMQP channels.
Classes wishing to take advantage of those functions should inherit from core.

Definition at line 74 of file core.hh.

Member Enumeration Documentation

post_listen_status

enum post_listen_status

strong

Enumerator
unknown	Initialized or unknown status.
message_received	A message was received, and the channel is still valid.
timeout	A timeout occurred, and the channel is still valid.
soft_error	An error occurred, but the channel should still be valid.
hard_error	An error occurred, and the channel is no longer valid.

Definition at line 79 of file core.hh.

Constructor & Destructor Documentation

core() [1/3]

core	(	const scarab::param_node &	a_config = dripline_config(),
		const scarab::authentication &	a_auth = scarab::authentication(),
		const bool	a_make_connection = true
	)

Definition at line 51 of file core.cc.

core() [2/3]

core ( const core &  a_orig )

default

core() [3/3]

core ( core &&  a_orig )

default

~core()

virtual ~core ( )

virtualdefault

Member Function Documentation

bind_key()

bool bind_key ( amqp_channel_ptr  a_channel, const std::string &  a_exchange, const std::string &  a_queue_name, const std::string &  a_routing_key  )

staticprotected

Definition at line 411 of file core.cc.

do_send()

sent_msg_pkg_ptr do_send ( message_ptr_t  a_message, const std::string &  a_exchange, bool  a_expect_reply, amqp_channel_ptr  a_channel = amqp_channel_ptr()  ) const

protected

Definition at line 185 of file core.cc.

listen_for_message()

void listen_for_message ( amqp_envelope_ptr &  a_envelope, core::post_listen_status &  a_status, amqp_channel_ptr  a_channel, const std::string &  a_consumer_tag, int  a_timeout_ms = 0, bool  a_do_ack = true  )

static

listen for a single AMQP message

Definition at line 528 of file core.cc.

open_channel()

amqp_channel_ptr open_channel ( ) const

protected

Definition at line 277 of file core.cc.

operator=() [1/2]

core& operator= ( const core &  a_orig )

default

operator=() [2/2]

core& operator= ( core &&  a_orig )

default

remove_queue()

bool remove_queue ( amqp_channel_ptr  a_channel, const std::string &  a_queue_name  )

staticprotected

Definition at line 498 of file core.cc.

send() [1/3]

sent_msg_pkg_ptr send ( alert_ptr_t  a_alert, amqp_channel_ptr  a_channel = amqp_channel_ptr()  ) const

virtual

Sends an alert message Default exchange is "alerts" Caller can supply a channel; if one is not supplied, a new channel will be established

Reimplemented in service.

Definition at line 174 of file core.cc.

send() [2/3]

sent_msg_pkg_ptr send ( reply_ptr_t  a_reply, amqp_channel_ptr  a_channel = amqp_channel_ptr()  ) const

virtual

Sends a reply message Default exchange is "requests" Caller can supply a channel; if one is not supplied, a new channel will be established

Reimplemented in service.

Definition at line 163 of file core.cc.

send() [3/3]

sent_msg_pkg_ptr send ( request_ptr_t  a_request, amqp_channel_ptr  a_channel = amqp_channel_ptr()  ) const

virtual

Sends a request message and returns a channel on which to listen for a reply. Default exchange is "requests" Caller can supply a channel; if one is not supplied, a new channel will be established

Reimplemented in service.

Definition at line 152 of file core.cc.

send_noreply()

bool send_noreply ( message_ptr_t  a_message, const std::string &  a_exchange  ) const

protected

send_withreply()

amqp_channel_ptr send_withreply ( message_ptr_t  a_message, std::string &  a_reply_consumer_tag, const std::string &  a_exchange  ) const

protected

setup_exchange()

bool setup_exchange ( amqp_channel_ptr  a_channel, const std::string &  a_exchange  )

staticprotected

Definition at line 360 of file core.cc.

setup_queue()

bool setup_queue ( amqp_channel_ptr  a_channel, const std::string &  a_queue_name  )

staticprotected

Definition at line 385 of file core.cc.

snake_case_mv_accessible() [1/4]

snake_case_mv_accessible	(	bool	,
		make_connection
	)

snake_case_mv_accessible() [2/4]

snake_case_mv_accessible	(	unsigned	,
		max_connection_attempts
	)

snake_case_mv_accessible() [3/4]

snake_case_mv_accessible	(	unsigned	,
		max_payload_size
	)

snake_case_mv_accessible() [4/4]

snake_case_mv_accessible	(	unsigned	,
		port
	)

snake_case_mv_referrable() [1/6]

snake_case_mv_referrable	(	std::string	,
		address
	)

snake_case_mv_referrable() [2/6]

snake_case_mv_referrable	(	std::string	,
		alerts_exchange
	)

snake_case_mv_referrable() [3/6]

snake_case_mv_referrable	(	std::string	,
		heartbeat_routing_key
	)

snake_case_mv_referrable() [4/6]

snake_case_mv_referrable	(	std::string	,
		password
	)

snake_case_mv_referrable() [5/6]

snake_case_mv_referrable	(	std::string	,
		requests_exchange
	)

snake_case_mv_referrable() [6/6]

snake_case_mv_referrable	(	std::string	,
		username
	)

start_consuming()

std::string start_consuming ( amqp_channel_ptr  a_channel, const std::string &  a_queue_name  )

staticprotected

Definition at line 437 of file core.cc.

stop_consuming()

bool stop_consuming ( amqp_channel_ptr  a_channel, std::string &  a_consumer_tag  )

staticprotected

Definition at line 462 of file core.cc.

Friends And Related Function Documentation

receiver

friend class receiver

friend

Definition at line 145 of file core.hh.

Member Data Documentation

s_offline

bool s_offline = false

static

Definition at line 77 of file core.hh.

---

The documentation for this class was generated from the following files:

• core.hh
• core.cc
