Primary unit of software that connects to a broker and typically provides an interface with an instrument or other software. More...

#include <service.hh>

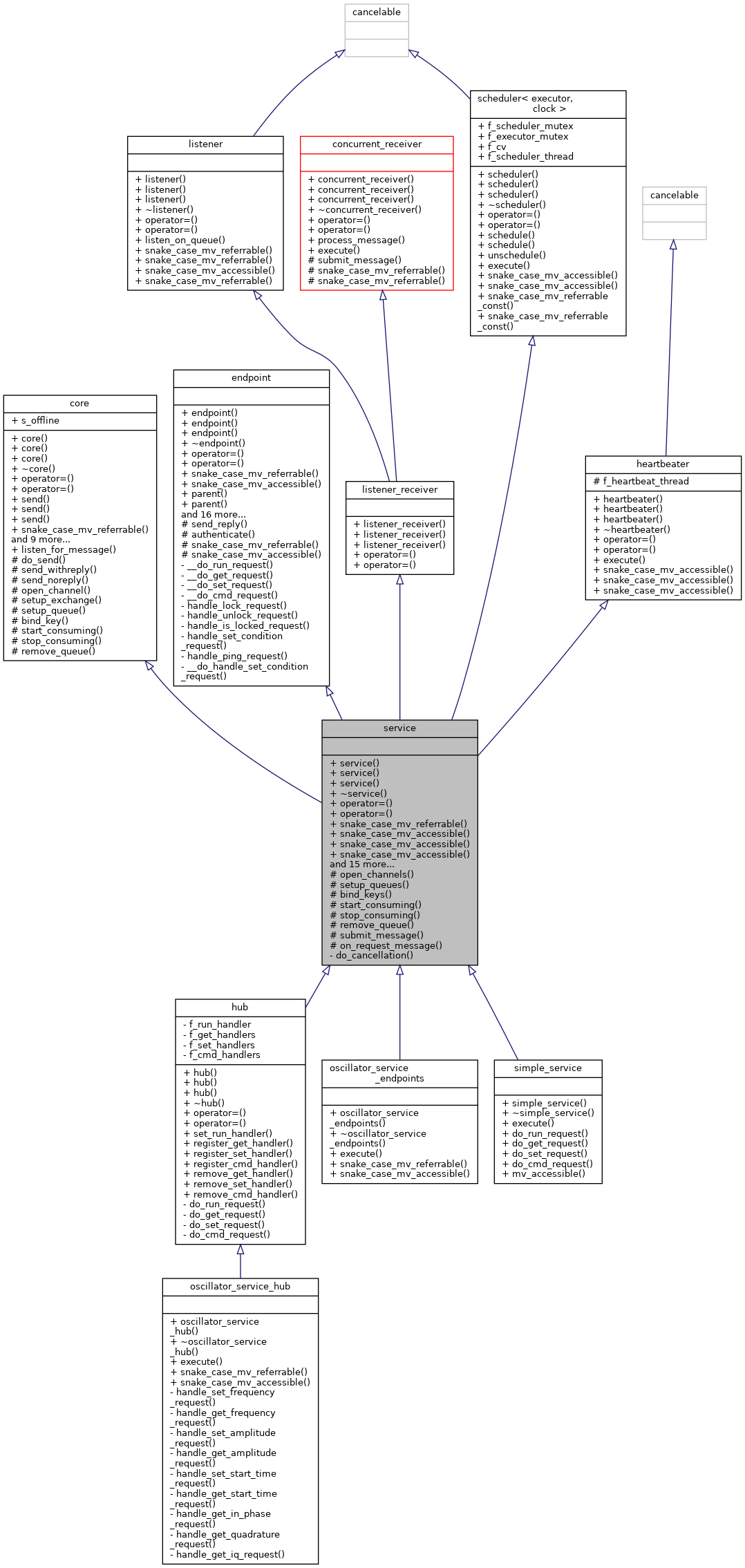

Inheritance diagram for service:

Public Types
typedef std::map< std::string, endpoint_ptr_t >	sync_map_t

typedef std::map< std::string, lr_ptr_t >	async_map_t

Public Types inherited from core
enum class	post_listen_status { unknown , message_received , timeout , soft_error , hard_error }

Public Types inherited from scheduler< executor, clock >
using	clock_t = clock

using	time_point_t = typename clock::time_point

using	duration_t = typename clock::duration

using	executable_t = std::function< void() >

typedef std::multimap< time_point_t, event >	events_map_t

Public Member Functions
	service (const scarab::param_node &a_config=service_config(), const scarab::authentication &a_auth=create_auth_with_dripline(true), const bool a_make_connection=true)

	service (const service &)=delete

	service (service &&a_orig)=default

virtual	~service ()

service &	operator= (const service &)=delete

service &	operator= (service &&a_orig)

	snake_case_mv_referrable (scarab::authentication, auth)

	snake_case_mv_accessible (status, status)

	snake_case_mv_accessible (bool, restart_on_error)

	snake_case_mv_accessible (bool, enable_scheduling)

bool	add_child (endpoint_ptr_t a_endpoint_ptr)
	Add a synchronous child endpoint. More...

bool	add_async_child (endpoint_ptr_t a_endpoint_ptr)
	Add an asynchronous child endpoint. More...

virtual sent_msg_pkg_ptr	send (request_ptr_t a_request, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
	Sends a request message and returns a channel on which to listen for a reply. More...

virtual sent_msg_pkg_ptr	send (reply_ptr_t a_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
	Sends a reply message. More...

virtual sent_msg_pkg_ptr	send (alert_ptr_t a_alert, amqp_channel_ptr a_channel=amqp_channel_ptr()) const
	Sends an alert message. More...

virtual void	run ()

bool	start ()

bool	listen ()

bool	stop ()

virtual bool	listen_on_queue ()

virtual void	send_reply (reply_ptr_t a_reply) const
	Sends a reply message. More...

	snake_case_mv_accessible (uuid_t, id)

	snake_case_mv_referrable (sync_map_t, sync_children)

	snake_case_mv_referrable (async_map_t, async_children)

	snake_case_mv_referrable (std::string, broadcast_key)

Public Member Functions inherited from core
	core (const scarab::param_node &a_config=dripline_config(), const scarab::authentication &a_auth=scarab::authentication(), const bool a_make_connection=true)

	core (const core &a_orig)=default

	core (core &&a_orig)=default

virtual	~core ()=default

core &	operator= (const core &a_orig)=default

core &	operator= (core &&a_orig)=default

	snake_case_mv_referrable (std::string, address)

	snake_case_mv_accessible (unsigned, port)

	snake_case_mv_referrable (std::string, username)

	snake_case_mv_referrable (std::string, password)

	snake_case_mv_referrable (std::string, requests_exchange)

	snake_case_mv_referrable (std::string, alerts_exchange)

	snake_case_mv_referrable (std::string, heartbeat_routing_key)

	snake_case_mv_accessible (unsigned, max_payload_size)

	snake_case_mv_accessible (bool, make_connection)

	snake_case_mv_accessible (unsigned, max_connection_attempts)

Public Member Functions inherited from endpoint
	endpoint (const std::string &a_name)

	endpoint (const endpoint &a_orig)=default

	endpoint (endpoint &&a_orig)=default

virtual	~endpoint ()=default

endpoint &	operator= (const endpoint &a_orig)=default

endpoint &	operator= (endpoint &&a_orig)=default

	snake_case_mv_referrable (std::string, name)

	snake_case_mv_accessible (service *, service)

service &	parent ()

const service &	parent () const

reply_ptr_t	submit_request_message (const request_ptr_t a_request)
	Directly submit a request message to this endpoint. More...

void	submit_reply_message (const reply_ptr_t a_reply)
	Directly submit a reply message to this endpoint. More...

void	submit_alert_message (const alert_ptr_t a_alert)
	Directly submit an alert message to this endpoint. More...

virtual void	on_reply_message (const reply_ptr_t a_reply)

virtual void	on_alert_message (const alert_ptr_t a_alert)

virtual reply_ptr_t	do_run_request (const request_ptr_t a_request)

virtual reply_ptr_t	do_get_request (const request_ptr_t a_request)

virtual reply_ptr_t	do_set_request (const request_ptr_t a_request)

virtual reply_ptr_t	do_cmd_request (const request_ptr_t a_request)

void	sort_message (const message_ptr_t a_request)

uuid_t	enable_lockout (const scarab::param_node &a_tag)
	enable lockout with randomly-generated key More...

uuid_t	enable_lockout (const scarab::param_node &a_tag, uuid_t a_key)
	enable lockout with user-supplied key More...

bool	disable_lockout (const uuid_t &a_key, bool a_force=false)

bool	is_locked () const

bool	check_key (const uuid_t &a_key) const

Public Member Functions inherited from listener_receiver
	listener_receiver ()

	listener_receiver (const listener_receiver &)=delete

	listener_receiver (listener_receiver &&a_orig)

listener_receiver &	operator= (const listener_receiver &)=delete

listener_receiver &	operator= (listener_receiver &&a_orig)

Public Member Functions inherited from listener
	listener ()

	listener (const listener &)=delete

	listener (listener &&a_orig)=default

virtual	~listener ()=default

listener &	operator= (const listener &)=delete

listener &	operator= (listener &&a_orig)

	snake_case_mv_referrable (amqp_channel_ptr, channel)

	snake_case_mv_referrable (std::string, consumer_tag)

	snake_case_mv_accessible (unsigned, listen_timeout_ms)

	snake_case_mv_referrable (std::thread, listener_thread)

Public Member Functions inherited from concurrent_receiver
	concurrent_receiver ()

	concurrent_receiver (const concurrent_receiver &)=delete

	concurrent_receiver (concurrent_receiver &&a_orig)

virtual	~concurrent_receiver ()

concurrent_receiver &	operator= (const concurrent_receiver &)=delete

concurrent_receiver &	operator= (concurrent_receiver &&a_orig)

virtual void	process_message (message_ptr_t a_message)
	Deposits the message in the concurrent queue (called by the listener) More...

void	execute ()
	Handles messages that appear in the concurrent queue by calling `submit_message()`. More...

Public Member Functions inherited from receiver
	receiver ()

	receiver (const receiver &a_orig)=delete

	receiver (receiver &&a_orig)=default

virtual	~receiver ()=default

receiver &	operator= (const receiver &a_orig)=delete

receiver &	operator= (receiver &&a_orig)

void	handle_message_chunk (amqp_envelope_ptr a_envelope)

void	wait_for_message (incoming_message_pack &a_pack, const std::string &a_message_id)

void	process_message_pack (incoming_message_pack &a_pack, const std::string &a_message_id)
	Converts a message pack into a Dripline message, and then submits the message for processing. More...

	snake_case_mv_referrable (incoming_message_map, incoming_messages)
	Stores the incomplete messages. More...

	snake_case_mv_accessible (unsigned, single_message_wait_ms)
	Wait time for all message chunks from a single dripline message. More...

	snake_case_mv_accessible (unsigned, reply_listen_timeout_ms)
	Listen timeout for individual message chunks when waiting for replies. More...

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, int a_timeout_ms=0)

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, core::post_listen_status &a_status, int a_timeout_ms=0)

Public Member Functions inherited from heartbeater
	heartbeater (service *a_service)
	Primary constructor. A service pointer is required to be able to send messages. More...

	heartbeater (const heartbeater &)=delete

	heartbeater (heartbeater &&a_orig)=default

virtual	~heartbeater ()=default

heartbeater &	operator= (const heartbeater &)=delete

heartbeater &	operator= (heartbeater &&a_orig)

void	execute (const std::string &a_name, uuid_t a_id, const std::string &a_routing_key)

	snake_case_mv_accessible (unsigned, heartbeat_interval_s)
	Interval between heartbeat alerts (default: 60 s) More...

	snake_case_mv_accessible (unsigned, check_timeout_ms)
	Timing interval for the internal loop (default: 1000 ms) More...

	snake_case_mv_accessible (service *, service)

Public Member Functions inherited from scheduler< executor, clock >
	scheduler ()

	scheduler (const scheduler &)=delete

	scheduler (scheduler &&)

virtual	~scheduler ()=default

scheduler &	operator= (const scheduler &)=delete

scheduler &	operator= (scheduler &&a_orig)

int	schedule (executable_t an_executable, time_point_t an_exe_time)

int	schedule (executable_t an_executable, duration_t an_interval, time_point_t an_exe_time=clock::now())

void	unschedule (int an_id)
	Unschedule an event using the event's ID. More...

void	execute ()
	Main execution loop for the scheduler. More...

	snake_case_mv_accessible (duration_t, exe_buffer)
	The time difference from "now" that determines whether an event is executed. More...

	snake_case_mv_accessible (duration_t, cycle_time)
	Main thread cycle time. More...

	snake_case_mv_referrable_const (executor, the_executor)
	The executor used to execute events. More...

	snake_case_mv_referrable_const (events_map_t, events)
	The scheduled events, stored in a map sorted by execution time. More...

Protected Types
enum class	status { nothing = 0 , channel_created = 10 , exchange_declared = 20 , queue_declared = 30 , queue_bound = 40 , consuming = 50 , listening = 60 , processing = 70 }

Protected Member Functions
virtual bool	open_channels ()

virtual bool	setup_queues ()

virtual bool	bind_keys ()

virtual bool	start_consuming ()

virtual bool	stop_consuming ()

virtual bool	remove_queue ()

virtual void	submit_message (message_ptr_t a_message)
	Implementation of submit_message (from concurrent_receiver) More...

virtual reply_ptr_t	on_request_message (const request_ptr_t a_request)
	Default request handler; passes request to initial request functions. More...

Protected Member Functions inherited from core
sent_msg_pkg_ptr	do_send (message_ptr_t a_message, const std::string &a_exchange, bool a_expect_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const

amqp_channel_ptr	send_withreply (message_ptr_t a_message, std::string &a_reply_consumer_tag, const std::string &a_exchange) const

bool	send_noreply (message_ptr_t a_message, const std::string &a_exchange) const

amqp_channel_ptr	open_channel () const

Protected Member Functions inherited from endpoint
bool	authenticate (const uuid_t &a_key) const
	Returns true if the server is unlocked or if it's locked and the key matches the lockout key; returns false otherwise. More...

	snake_case_mv_referrable (scarab::param_node, lockout_tag)

	snake_case_mv_accessible (uuid_t, lockout_key)

Protected Member Functions inherited from concurrent_receiver
	snake_case_mv_referrable (scarab::concurrent_queue< message_ptr_t >, message_queue)

	snake_case_mv_referrable (std::thread, receiver_thread)

Protected Member Functions inherited from receiver
reply_ptr_t	process_received_reply (incoming_message_pack &a_pack, const std::string &a_message_id)

Private Member Functions
virtual void	do_cancellation (int a_code)

Additional Inherited Members
Static Public Member Functions inherited from core
static void	listen_for_message (amqp_envelope_ptr &a_envelope, post_listen_status &a_status, amqp_channel_ptr a_channel, const std::string &a_consumer_tag, int a_timeout_ms=0, bool a_do_ack=true)
	listen for a single AMQP message More...

Public Attributes inherited from scheduler< executor, clock >
snake_case_mv_accessible_static(int, curr_id) protected std::recursive_mutex	f_scheduler_mutex
	The ID to be used for the next scheduled event. More...

std::mutex	f_executor_mutex

std::condition_variable_any	f_cv

std::thread	f_scheduler_thread

Static Public Attributes inherited from core
static bool	s_offline = false

Static Protected Member Functions inherited from core
static bool	setup_exchange (amqp_channel_ptr a_channel, const std::string &a_exchange)

static bool	setup_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

static bool	bind_key (amqp_channel_ptr a_channel, const std::string &a_exchange, const std::string &a_queue_name, const std::string &a_routing_key)

static std::string	start_consuming (amqp_channel_ptr a_channel, const std::string &a_queue_name)

static bool	stop_consuming (amqp_channel_ptr a_channel, std::string &a_consumer_tag)

static bool	remove_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

Protected Attributes inherited from heartbeater
std::thread	f_heartbeat_thread

Detailed Description

Primary unit of software that connects to a broker and typically provides an interface with an instrument or other software.

Author: N.S. Oblath

The service class is the implementation of the "service" concept in Dripline. It's the primary component that makes up a Dripline mesh.

The lifetime of a service is defined by the three main functions:

start() – create the AMQP channel, create the AMQP queue, bind the routing keys, and start consuming AMQP messages
listen() – starts the heartbeat and scheduler threads (optional), starts the receiver thread, and waits for and handles messages on the queue
stop() – (called asynchronously) cancels the listening service

The ability to handle and respond to Dripline messages is embodied in the endpoint class.
Service uses endoint in three ways:

Service is an endpoint. A service can be setup to handle messages directed to it.
Service has basic child endpoints. These are also called "synchronous" endpoints.
These endpoints use the same AMQP queue as the service itself. Messages send to the service and to the synchronous endpoints are all handled serially.
Service has asynchronous child endpoints. These endpoints each have their own AMQP queue and thread responsible for receiving and handling their messages.

A service has a number of key characteristics (most of which come from its parent classes): core – Has all of the basic AMQP capabilities, sending messages, and making and manipulating connections endpoint – Handles Dripline messages listener_receiver – Asynchronously recieves AMQP messages and turns them into Dripline messages heartbeater – Sends periodic heartbeat messages scheduler – Can schedule events

As is apparent from the above descriptions, a service is responsible for a number of threads when it executes: Listening – grabs AMQP messages off the channel when they arrive Message-wait – any incomplete multi-part Dripline message will setup a thread to wait until the message is complete, and then submits it for handling Receiver – grabs completed Dripline messages and handles it Async endpoint listening – same as abovefor each asynchronous endpoint Async endpoint message-wait – same as above for each asynchronous endpoint Async endpoint receiver – same as above for each asynchronous endpoint Heatbeater – sends regular heartbeat messages Scheduler – executes scheduled events

In addition to receiving messages from the broker, a user or client code can give messages directly to the service using process_message(message).

Definition at line 79 of file service.hh.

Member Typedef Documentation

◆ async_map_t

typedef std::map< std::string, lr_ptr_t > async_map_t

Definition at line 212 of file service.hh.

◆ sync_map_t

typedef std::map< std::string, endpoint_ptr_t > sync_map_t

Definition at line 209 of file service.hh.

Member Enumeration Documentation

◆ status

enum status

strongprotected

Enumerator
nothing
channel_created
exchange_declared
queue_declared
queue_bound
consuming
listening
processing

Definition at line 87 of file service.hh.

Constructor & Destructor Documentation

◆ service() [1/3]

service	(	const scarab::param_node &	a_config = `service_config()`,
		const scarab::authentication &	a_auth = `create_auth_with_dripline(true)`,
		const bool	a_make_connection = `true`
	)

Definition at line 31 of file service.cc.

◆ service() [2/3]

service ( const service & )

delete

◆ service() [3/3]

service ( service && a_orig )

default

◆ ~service()

~service ( )

virtual

Definition at line 77 of file service.cc.

Member Function Documentation

◆ add_async_child()

bool add_async_child ( endpoint_ptr_t a_endpoint_ptr )

Add an asynchronous child endpoint.

Definition at line 122 of file service.cc.

◆ add_child()

bool add_child ( endpoint_ptr_t a_endpoint_ptr )

Add a synchronous child endpoint.

Definition at line 107 of file service.cc.

◆ bind_keys()

bool bind_keys ( )

protectedvirtual

Definition at line 386 of file service.cc.

◆ do_cancellation()

void do_cancellation ( int a_code )

privatevirtual

Definition at line 581 of file service.cc.

◆ listen()

bool listen ( )

Starts listening on the queue for receiving messages. If no queue was created, this does nothing. If this returns false, the service should quit with an error

Definition at line 230 of file service.cc.

◆ listen_on_queue()

bool listen_on_queue ( )

virtual

Waits for AMQP messages arriving on the channel Returns false if the return is due to an error in this function; returns true otherwise (namely because it was canceled)

Implements listener.

Definition at line 454 of file service.cc.

◆ on_request_message()

reply_ptr_t on_request_message ( const request_ptr_t a_request )

protectedvirtual

Default request handler; passes request to initial request functions.

Reimplemented from endpoint.

Definition at line 556 of file service.cc.

◆ open_channels()

bool open_channels ( )

protectedvirtual

Definition at line 353 of file service.cc.

◆ operator=() [1/2]

service& operator= ( const service & )

delete

◆ operator=() [2/2]

service & operator= ( service && a_orig )

Definition at line 87 of file service.cc.

◆ remove_queue()

bool remove_queue ( )

protectedvirtual

Definition at line 440 of file service.cc.

◆ run()

void run ( )

virtual

Runs the service, which consists of three stages:

Starting the service – sets up the connection with the broker
Listens for messages – waits on the queue to receive messages, and then handles them
Stops the service – breaks down everything that was setup in start()

Override this to customize when happens when a service runs.

Definition at line 142 of file service.cc.

◆ send() [1/3]

sent_msg_pkg_ptr send	(	alert_ptr_t	a_alert,
		amqp_channel_ptr	a_channel = `amqp_channel_ptr()`
	)		const

inlinevirtual

Sends an alert message.

Reimplemented from core.

Definition at line 243 of file service.hh.

◆ send() [2/3]

sent_msg_pkg_ptr send	(	reply_ptr_t	a_reply,
		amqp_channel_ptr	a_channel = `amqp_channel_ptr()`
	)		const

inlinevirtual

Sends a reply message.

Reimplemented from core.

Definition at line 235 of file service.hh.

◆ send() [3/3]

sent_msg_pkg_ptr send	(	request_ptr_t	a_request,
		amqp_channel_ptr	a_channel = `amqp_channel_ptr()`
	)		const

inlinevirtual

Sends a request message and returns a channel on which to listen for a reply.

Reimplemented from core.

Definition at line 227 of file service.hh.

◆ send_reply()

void send_reply ( reply_ptr_t a_reply ) const

virtual

Sends a reply message.

Reimplemented from endpoint.

Definition at line 542 of file service.cc.

◆ setup_queues()

bool setup_queues ( )

protectedvirtual

Definition at line 370 of file service.cc.

◆ snake_case_mv_accessible() [1/4]

snake_case_mv_accessible	(	bool	,
		enable_scheduling
	)

◆ snake_case_mv_accessible() [2/4]

snake_case_mv_accessible	(	bool	,
		restart_on_error
	)

◆ snake_case_mv_accessible() [3/4]

snake_case_mv_accessible	(	status	,
		status
	)

◆ snake_case_mv_accessible() [4/4]

snake_case_mv_accessible	(	uuid_t	,
		id
	)

◆ snake_case_mv_referrable() [1/4]

snake_case_mv_referrable	(	async_map_t	,
		async_children
	)

◆ snake_case_mv_referrable() [2/4]

snake_case_mv_referrable	(	scarab::authentication	,
		auth
	)

◆ snake_case_mv_referrable() [3/4]

snake_case_mv_referrable	(	std::string	,
		broadcast_key
	)

◆ snake_case_mv_referrable() [4/4]

snake_case_mv_referrable	(	sync_map_t	,
		sync_children
	)

◆ start()

bool start ( )

Creates a channel to the broker and establishes the queue for receiving messages. If no queue name was given, this does nothing. If this returns false, the service should quit with an error

Definition at line 192 of file service.cc.

◆ start_consuming()

bool start_consuming ( )

protectedvirtual

Definition at line 411 of file service.cc.

◆ stop()

bool stop ( )

Stops receiving messages and closes the connection to the broker. If no queue was created, this does nothing. If this returns false, the service should quit with an error

Definition at line 328 of file service.cc.

◆ stop_consuming()

bool stop_consuming ( )

protectedvirtual

Definition at line 426 of file service.cc.

◆ submit_message()

void submit_message ( message_ptr_t a_message )

protectedvirtual

Implementation of submit_message (from concurrent_receiver)

Implements concurrent_receiver.

Definition at line 511 of file service.cc.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Private Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ async_map_t

◆ sync_map_t

Member Enumeration Documentation

◆ status

Constructor & Destructor Documentation

◆ service() [1/3]

◆ service() [2/3]

◆ service() [3/3]

◆ ~service()

Member Function Documentation

◆ add_async_child()

◆ add_child()

◆ bind_keys()

◆ do_cancellation()

◆ listen()

◆ listen_on_queue()

◆ on_request_message()

◆ open_channels()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ remove_queue()

◆ run()

◆ send() [1/3]

◆ send() [2/3]

◆ send() [3/3]

◆ send_reply()

◆ setup_queues()

◆ snake_case_mv_accessible() [1/4]

◆ snake_case_mv_accessible() [2/4]

◆ snake_case_mv_accessible() [3/4]

◆ snake_case_mv_accessible() [4/4]

◆ snake_case_mv_referrable() [1/4]

◆ snake_case_mv_referrable() [2/4]

◆ snake_case_mv_referrable() [3/4]

◆ snake_case_mv_referrable() [4/4]

◆ start()

◆ start_consuming()

◆ stop()

◆ stop_consuming()

◆ submit_message()
