Listens for messages sent to a particular set of keys and prints them. More...

#include <monitor.hh>

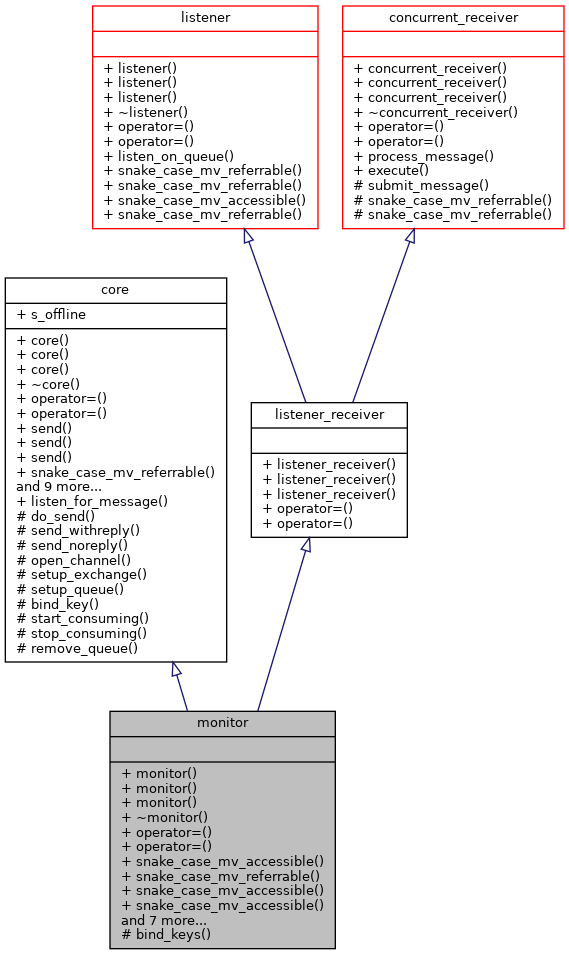

Inheritance diagram for monitor:

Public Types
typedef std::vector< std::string >	keys_t

Public Types inherited from core
enum class	post_listen_status { unknown , message_received , timeout , soft_error , hard_error }

Public Member Functions
	monitor (const scarab::param_node &a_config, const scarab::authentication &a_auth)

	monitor (const monitor &)=delete

	monitor (monitor &&a_orig)=default

virtual	~monitor ()

monitor &	operator= (const monitor &)=delete

monitor &	operator= (monitor &&a_orig)=default

	snake_case_mv_accessible (status, status)

	snake_case_mv_referrable (std::string, name)
	Name for this monitor; automiatically set to `monitor_[uuid]` More...

	snake_case_mv_accessible (bool, json_print)

	snake_case_mv_accessible (bool, pretty_print)
	Flag to indicate whether JSON should be printed with extra whitespace for human readability. More...

	snake_case_mv_referrable (keys_t, requests_keys)
	Set of request keys to be listened for. More...

	snake_case_mv_referrable (keys_t, alerts_keys)
	Set of alerts keys to be listened for. More...

bool	start ()
	Opens the AMQP connection, binds keys, and starts consuming. More...

bool	listen ()
	Starts actively listening for and handling messages (blocking). More...

bool	stop ()
	Stops listening for messages and closes the AMQP connection. More...

virtual bool	listen_on_queue ()

virtual void	submit_message (message_ptr_t a_message)

Public Member Functions inherited from core
	core (const scarab::param_node &a_config=dripline_config(), const scarab::authentication &a_auth=scarab::authentication(), const bool a_make_connection=true)

	core (const core &a_orig)=default

	core (core &&a_orig)=default

virtual	~core ()=default

core &	operator= (const core &a_orig)=default

core &	operator= (core &&a_orig)=default

virtual sent_msg_pkg_ptr	send (request_ptr_t a_request, amqp_channel_ptr a_channel=amqp_channel_ptr()) const

virtual sent_msg_pkg_ptr	send (reply_ptr_t a_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const

virtual sent_msg_pkg_ptr	send (alert_ptr_t a_alert, amqp_channel_ptr a_channel=amqp_channel_ptr()) const

	snake_case_mv_referrable (std::string, address)

	snake_case_mv_accessible (unsigned, port)

	snake_case_mv_referrable (std::string, username)

	snake_case_mv_referrable (std::string, password)

	snake_case_mv_referrable (std::string, requests_exchange)

	snake_case_mv_referrable (std::string, alerts_exchange)

	snake_case_mv_referrable (std::string, heartbeat_routing_key)

	snake_case_mv_accessible (unsigned, max_payload_size)

	snake_case_mv_accessible (bool, make_connection)

	snake_case_mv_accessible (unsigned, max_connection_attempts)

Public Member Functions inherited from listener_receiver
	listener_receiver ()

	listener_receiver (const listener_receiver &)=delete

	listener_receiver (listener_receiver &&a_orig)

listener_receiver &	operator= (const listener_receiver &)=delete

listener_receiver &	operator= (listener_receiver &&a_orig)

Public Member Functions inherited from listener
	listener ()

	listener (const listener &)=delete

	listener (listener &&a_orig)=default

virtual	~listener ()=default

listener &	operator= (const listener &)=delete

listener &	operator= (listener &&a_orig)

	snake_case_mv_referrable (amqp_channel_ptr, channel)

	snake_case_mv_referrable (std::string, consumer_tag)

	snake_case_mv_accessible (unsigned, listen_timeout_ms)

	snake_case_mv_referrable (std::thread, listener_thread)

Public Member Functions inherited from concurrent_receiver
	concurrent_receiver ()

	concurrent_receiver (const concurrent_receiver &)=delete

	concurrent_receiver (concurrent_receiver &&a_orig)

virtual	~concurrent_receiver ()

concurrent_receiver &	operator= (const concurrent_receiver &)=delete

concurrent_receiver &	operator= (concurrent_receiver &&a_orig)

virtual void	process_message (message_ptr_t a_message)
	Deposits the message in the concurrent queue (called by the listener) More...

void	execute ()
	Handles messages that appear in the concurrent queue by calling `submit_message()`. More...

Public Member Functions inherited from receiver
	receiver ()

	receiver (const receiver &a_orig)=delete

	receiver (receiver &&a_orig)=default

virtual	~receiver ()=default

receiver &	operator= (const receiver &a_orig)=delete

receiver &	operator= (receiver &&a_orig)

void	handle_message_chunk (amqp_envelope_ptr a_envelope)

void	wait_for_message (incoming_message_pack &a_pack, const std::string &a_message_id)

void	process_message_pack (incoming_message_pack &a_pack, const std::string &a_message_id)
	Converts a message pack into a Dripline message, and then submits the message for processing. More...

	snake_case_mv_referrable (incoming_message_map, incoming_messages)
	Stores the incomplete messages. More...

	snake_case_mv_accessible (unsigned, single_message_wait_ms)
	Wait time for all message chunks from a single dripline message. More...

	snake_case_mv_accessible (unsigned, reply_listen_timeout_ms)
	Listen timeout for individual message chunks when waiting for replies. More...

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, int a_timeout_ms=0)

reply_ptr_t	wait_for_reply (const sent_msg_pkg_ptr a_receive_reply, core::post_listen_status &a_status, int a_timeout_ms=0)

Protected Types
enum class	status { nothing = 0 , channel_created = 10 , exchange_declared = 20 , queue_declared = 30 , queue_bound = 40 , consuming = 50 , listening = 60 }

Protected Member Functions
bool	bind_keys ()

Protected Member Functions inherited from core
sent_msg_pkg_ptr	do_send (message_ptr_t a_message, const std::string &a_exchange, bool a_expect_reply, amqp_channel_ptr a_channel=amqp_channel_ptr()) const

amqp_channel_ptr	send_withreply (message_ptr_t a_message, std::string &a_reply_consumer_tag, const std::string &a_exchange) const

bool	send_noreply (message_ptr_t a_message, const std::string &a_exchange) const

amqp_channel_ptr	open_channel () const

Protected Member Functions inherited from concurrent_receiver
	snake_case_mv_referrable (scarab::concurrent_queue< message_ptr_t >, message_queue)

	snake_case_mv_referrable (std::thread, receiver_thread)

Protected Member Functions inherited from receiver
reply_ptr_t	process_received_reply (incoming_message_pack &a_pack, const std::string &a_message_id)

Additional Inherited Members
Static Public Member Functions inherited from core
static void	listen_for_message (amqp_envelope_ptr &a_envelope, post_listen_status &a_status, amqp_channel_ptr a_channel, const std::string &a_consumer_tag, int a_timeout_ms=0, bool a_do_ack=true)
	listen for a single AMQP message More...

Static Public Attributes inherited from core
static bool	s_offline = false

Static Protected Member Functions inherited from core
static bool	setup_exchange (amqp_channel_ptr a_channel, const std::string &a_exchange)

static bool	setup_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

static bool	bind_key (amqp_channel_ptr a_channel, const std::string &a_exchange, const std::string &a_queue_name, const std::string &a_routing_key)

static std::string	start_consuming (amqp_channel_ptr a_channel, const std::string &a_queue_name)

static bool	stop_consuming (amqp_channel_ptr a_channel, std::string &a_consumer_tag)

static bool	remove_queue (amqp_channel_ptr a_channel, const std::string &a_queue_name)

Detailed Description

Listens for messages sent to a particular set of keys and prints them.

Author: N.S. Oblath

The monitor is initially configured with a set of keys to listen for.
Keys can be specified for the alerts exchange and for the requests exchange.

Keys can be passed to the monitor in the configuration scarab::param_node object.
Alerts keys can be supplied as alerts-keys followed by an array of keys or alerts-key followed by a single key. Requests keys can be supplied as requests-keys followed by an array of keys or requests-key followed by a single key.

All AMQP-standard notation for keys, including wildcards, are allowed.

When activated, the alerts keys are bound to the alerts exchange, and the requests keys are bound to the requests exchange. The monitor then waits to receive a message. When a message is seen, it prints it to stdout.

Definition at line 44 of file monitor.hh.

Member Typedef Documentation

◆ keys_t

typedef std::vector< std::string > keys_t

Definition at line 80 of file monitor.hh.

Member Enumeration Documentation

◆ status

enum status

strongprotected

Enumerator
nothing
channel_created
exchange_declared
queue_declared
queue_bound
consuming
listening

Definition at line 49 of file monitor.hh.

Constructor & Destructor Documentation

◆ monitor() [1/3]

monitor	(	const scarab::param_node &	a_config,
		const scarab::authentication &	a_auth
	)

Definition at line 23 of file monitor.cc.

◆ monitor() [2/3]

monitor ( const monitor & )

delete

◆ monitor() [3/3]

monitor ( monitor && a_orig )

default

◆ ~monitor()

~monitor ( )

virtual

Definition at line 71 of file monitor.cc.

Member Function Documentation

◆ bind_keys()

bool bind_keys ( )

protected

Definition at line 189 of file monitor.cc.

◆ listen()

bool listen ( )

Starts actively listening for and handling messages (blocking).

Definition at line 120 of file monitor.cc.

◆ listen_on_queue()

bool listen_on_queue ( )

virtual

Waits for a single AMQP message and processes it. Returns false if the return is due to an error in this function; returns true otherwise (namely because it was canceled)

Implements listener.

Definition at line 206 of file monitor.cc.

◆ operator=() [1/2]

monitor& operator= ( const monitor & )

delete

◆ operator=() [2/2]

monitor& operator= ( monitor && a_orig )

default

◆ snake_case_mv_accessible() [1/3]

snake_case_mv_accessible	(	bool	,
		json_print
	)

Flag to indicate whether syntactically-correct JSON should be printed, or whether the default style (similar to but not exactly JSON) should be used.

◆ snake_case_mv_accessible() [2/3]

snake_case_mv_accessible	(	bool	,
		pretty_print
	)

Flag to indicate whether JSON should be printed with extra whitespace for human readability.

◆ snake_case_mv_accessible() [3/3]

snake_case_mv_accessible	(	status	,
		status
	)

◆ snake_case_mv_referrable() [1/3]

snake_case_mv_referrable	(	keys_t	,
		alerts_keys
	)

Set of alerts keys to be listened for.

◆ snake_case_mv_referrable() [2/3]

snake_case_mv_referrable	(	keys_t	,
		requests_keys
	)

Set of request keys to be listened for.

◆ snake_case_mv_referrable() [3/3]

snake_case_mv_referrable	(	std::string	,
		name
	)

Name for this monitor; automiatically set to monitor_[uuid]

◆ start()

bool start ( )

Opens the AMQP connection, binds keys, and starts consuming.

Definition at line 81 of file monitor.cc.

◆ stop()

bool stop ( )

Stops listening for messages and closes the AMQP connection.

Definition at line 164 of file monitor.cc.

◆ submit_message()

void submit_message ( message_ptr_t a_message )

virtual

Handles a single Dripline message by printing it to stdout. Printing is done via a prog-level message in the logger.

Implements concurrent_receiver.

Definition at line 259 of file monitor.cc.

The documentation for this class was generated from the following files:
